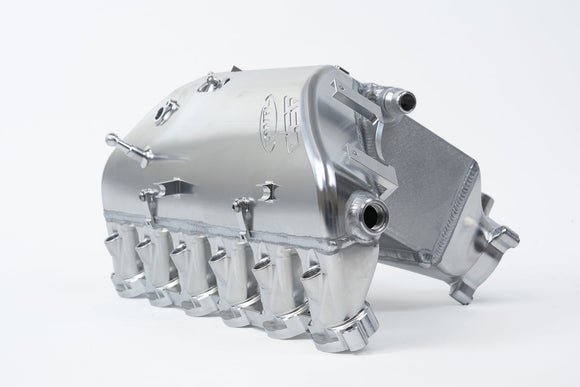

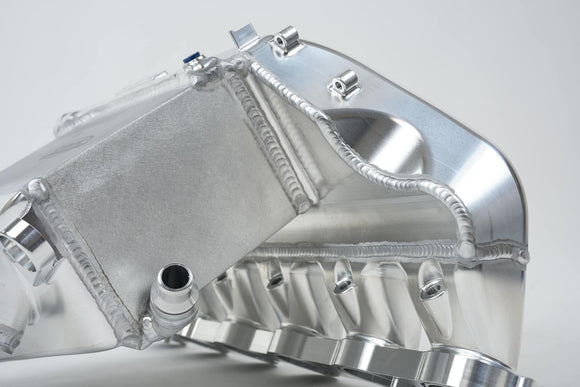

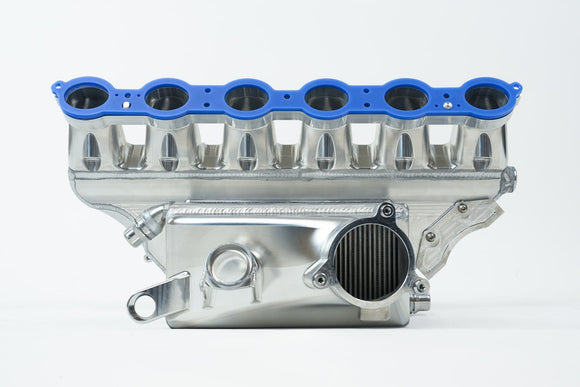

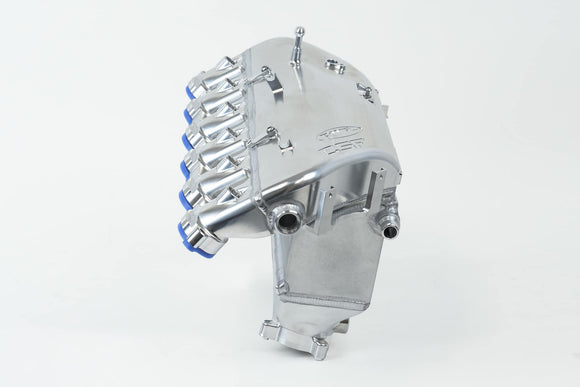

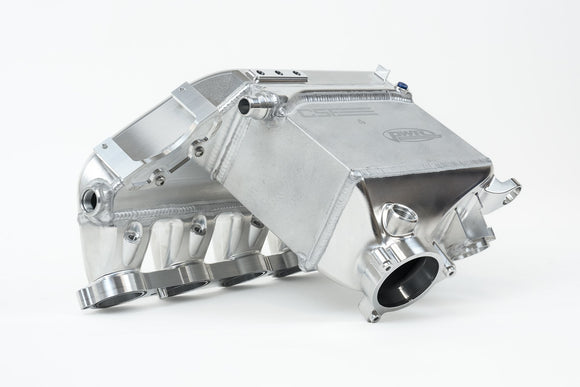

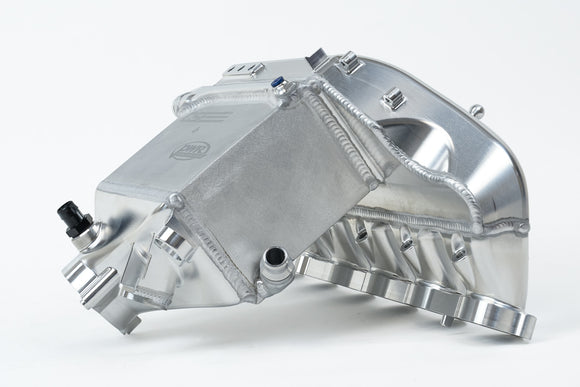

CSF BMW S58 “Level-Up” Charge-Air-Cooler Manifold

CSF SKU: csf8233

$6,599.00

Shipping calculated at checkout

Color: Aluminum





  • Faster recovery of Intake Air Temperatures (IATs)
  • ~30°F reduction of Intake Air Temperatures (IATs) compared to OEM
  • Less pressure drop compared to OEM core
    • Puts less stress on the turbo system and allows more boost to be made at higher target power levels

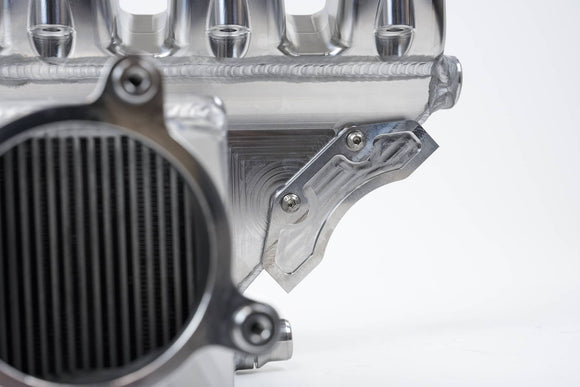

  • Ultra strong CNC Billet construction replaces weak plastic tanks with crimped-on gasket sealing core.
  • High performance bar/plate intercooler core by PWR pressure tested to 120psi
    • OEM cooler is a tube/fin core which is prone to failing at pressures over ~27psi
  • Top feed port injection w/ included fuel rail (w/ CNC machined block-off caps included for non-use)
  • Integrated Nitrous/Methanol Injection Ports

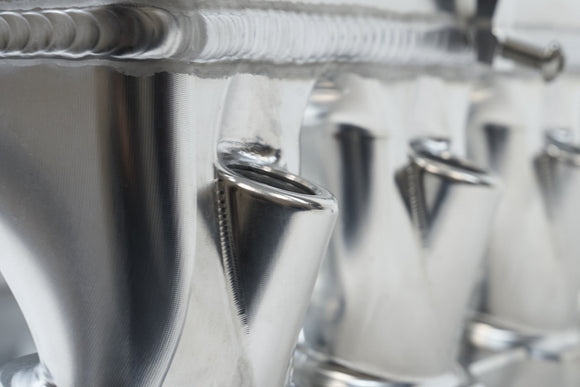

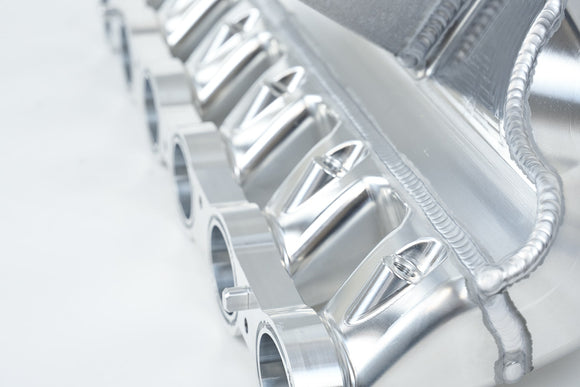

    • Individual ports for each runner for maximum control
  • Integrated vacuum and parameter pad to measure additional parameters
  • Easy access to spin-off oil filter
  • Integrated breather port for easy bleeding of air from the water side of the manifold
  • Included KIYLEX Thermal Rejection Manifold Spacer
    • Made from KIYLEX® – A patented revolutionary high-performance final stage polymer
    • Acts as a thermal barrier that dissipates heat between the cylinder head and intake manifold
    • Proven to lower intake manifold temperatures by up to 15%
    • Lowers Intake Air Temps (IATs)
  • All necessary brackets, hardware, and instructions to install
  • Raw Billet Aluminum Finish (#8233)
  • Thermal Black Heat Dispersion Powder-Coating Finish (#8233B)

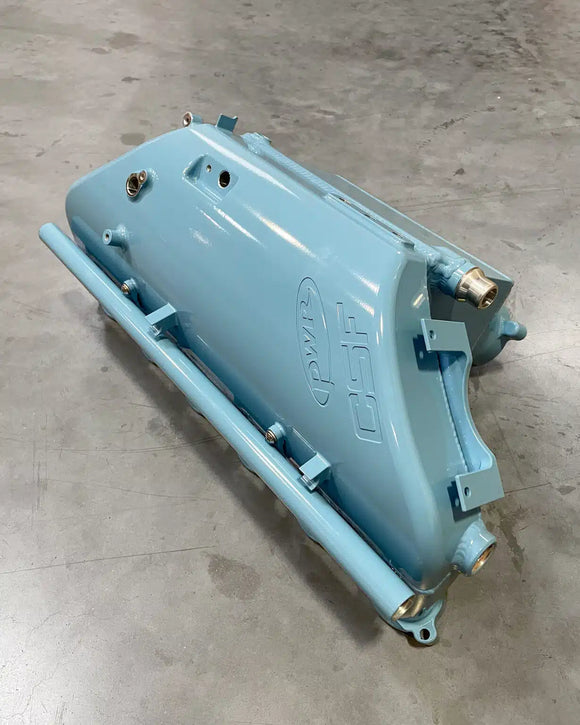

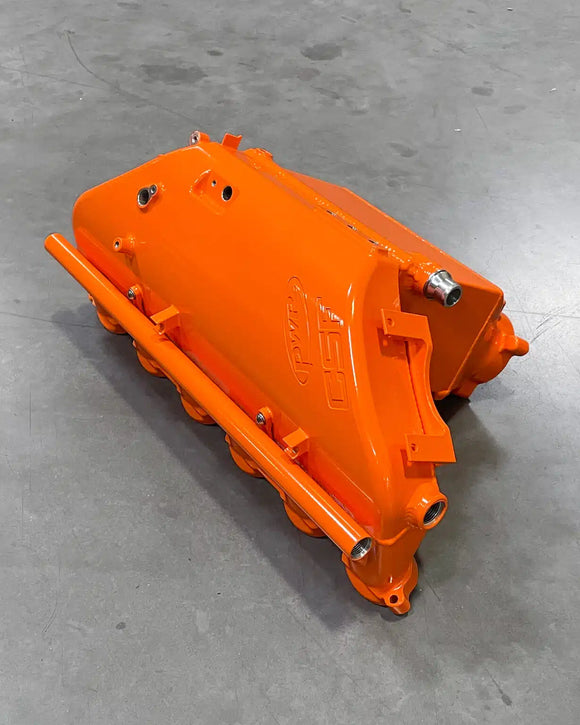

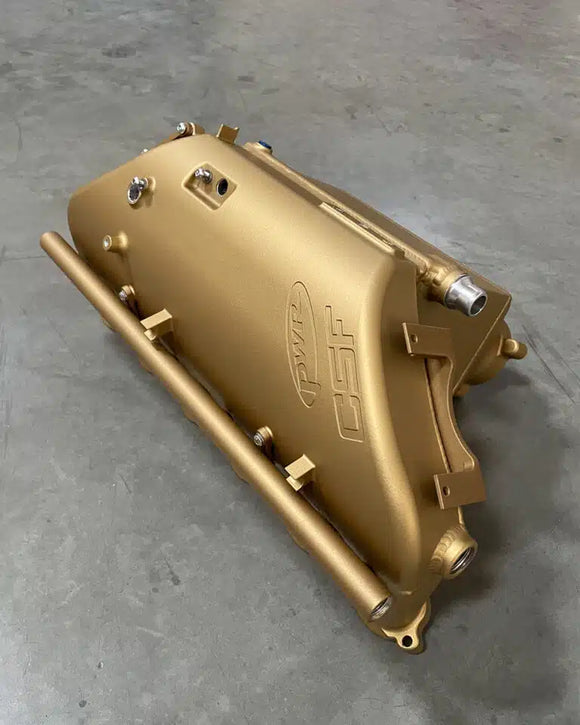

  • Available in custom colors from the leader in BMW cooling customization (#8233C)
  • True Plug-and-Play “Drop-in Fit” Installation – Requires Absolutely No Modifications.
  • OEM level of fit and finish
  • Limited Lifetime Warranty
  • Applications:
    • 2021+ BMW G80 M3 (incl. Competition) – 6MT & ZF8 Auto
    • 2021+ BMW G82/G83 M4 (incl. Competition) – 6MT & ZF8 Auto
    • 2020+ BMW F97 X3 M (incl. Competition)
    • 2020+ BMW F98 X4 M (incl. Competition)
  • OEM Part Number:
    • BMW: 17-51-8-092-584
    • BMW: 17-51-8-053-321
