KLM S58 G8X Single Turbo SAVAGE Series Kit

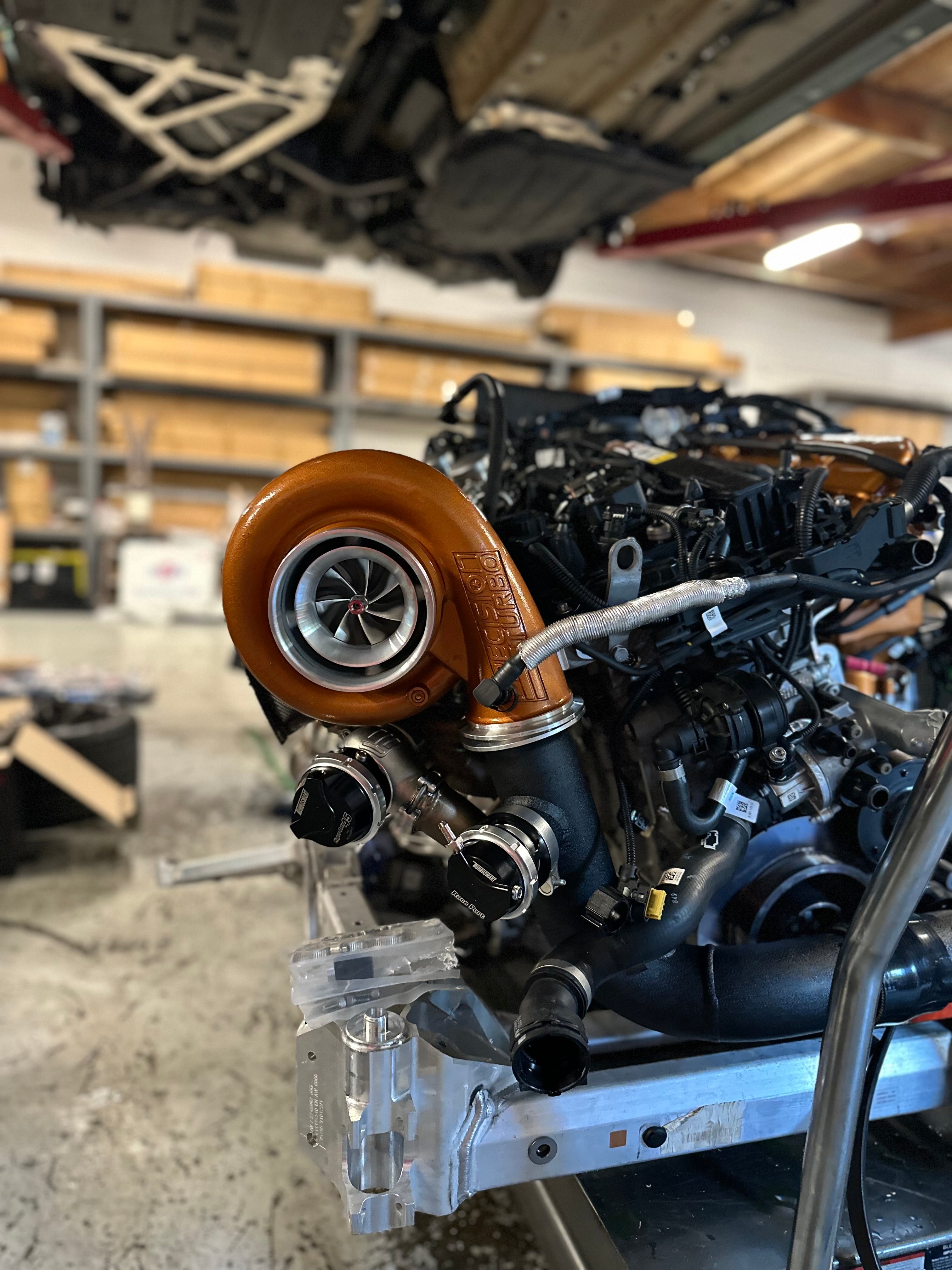

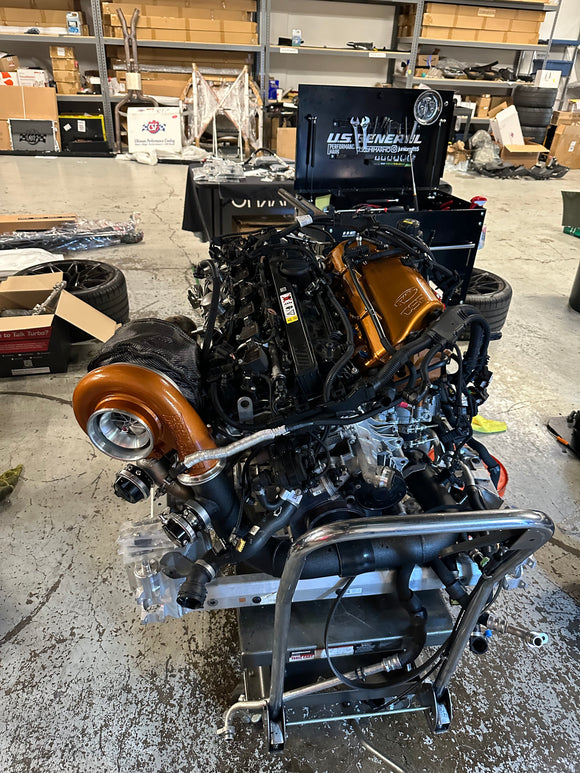

This is the Single Turbo kit our shop G80 M3 runs.
Absolutely stunning quality and fitment.
Chase your big numbers, and do it right the first time.

These kits are made to order. Expect 4-6 weeks lead time.

As of 7/15/24 kits will no longer come with a BOV on the charge pipe and are not required to run this kit properly

Our SAVAGE kits come with a 4″ DP and turndown tip. Please note if you want to run a full exhaust you will need run a 4″ all the way back or modify your exhaust to fit the new DP

Turbo Kit Includes:

1.) *** Turbo Next Gen PTE 7480 Sportsman or Next Gen R 6870 Sportsman***
2.) Wastegates 2x Turbosmart 45mm
3.) Coupler 3” (x1)
4.) Manifold True Twin Scroll T4 Divided Dual Wastegate
5.) *** 4″ Down Pipe ***
6.) V-Band Clamp for Down Pipe
7.) Dump Tubes (X2)
8.) *** Intercooler Piping with 3 Weld Fittings/ 1 BOV Flange w/ V-Band Sportsman Flange ***
9.) *** V-Band Clamp for Intercooler Piping ***
10.) Turbo Studs & Turbo Gasket (Trimmed Studs)
11.) 10AN Nylon Braid Hose 2ft.
12.) 10AN Hose end Fitting 1 X 45Degree
13.) 10 AN Hose end fitting 1 X 90 degree
14.) Stainless Braid Oil feed Line 2ft. Vibrant
15.) Silicon Vacuum Hose 6ft.
16.) 4AN to 4AN 90 Degree Oil Feed Fitting
17.) Oil Return Block Off Fitting
18.) Oil Feed Block Off Fitting
19.) Oil Return Block Fitting 10AN (use factory bolt and O-ring)
20.) Oil Feed Block Fitting 4AN (use factory bolt and O-ring)
21.) Drain Block Off Front (use factory bolt and O-ring)
22.) Drain Block Off Cap (Factory Style)
23.) Turbo Oil Drain Fitting / with Bolts and O-Ring (x2)
24.) M6x12mm Bolts for Intercooler Piping (X3) [1x for map, 2X for Rad Bracket]
25.) Heat Tape (20 Inches)
26.) Vacuum T Fittings (X2)
27.) KLM Stickers
28.) 1/8″ NPT Plugs (x2)
29.) O2 Sensor Block Off (X2)
30.) Billet Throttle Body Adapter

Coolant Overflow Relocation Kit:
31.a) Relocation Bracket
31.b) 180° Hose
31.c) 90° Hose (22in cut form 90)
31.d) Aluminum Barb Fitting
31.e) 1/4″ Heater Hose (thicker than vacuum hose) 45in
31.f) Brown and Black Wire 5ft.
31.g) 5ft. Wire Loom
31.h) 4X Wire Connector
31.i) 4X 1/4″ Hose Clamps
31.j) 4X 5/8″ Hose Clamps
32.) Turbo drain and feed line heat sleeve
33.) Vacuum line heat sleeve
