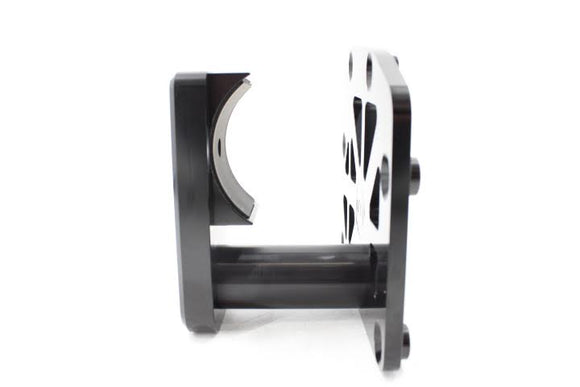

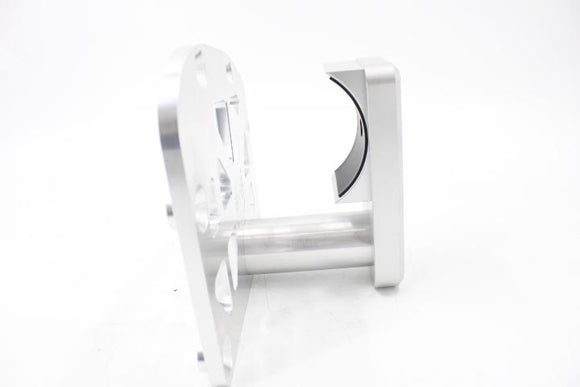

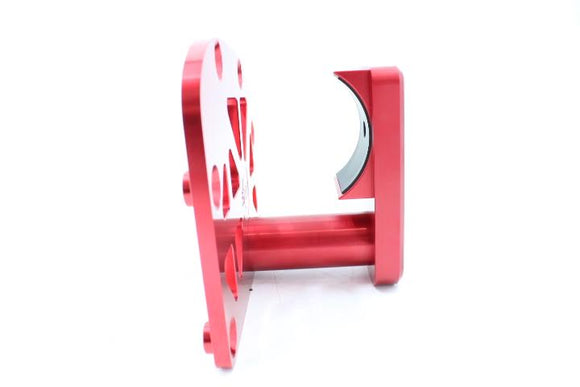

VTT E9X M3 Billet Diff Lock Down Kit

Vargas Turbo Technologies SKU: VTT-E9X-M3-LOCKDOWN


Shipping calculated at checkout

Available Now!

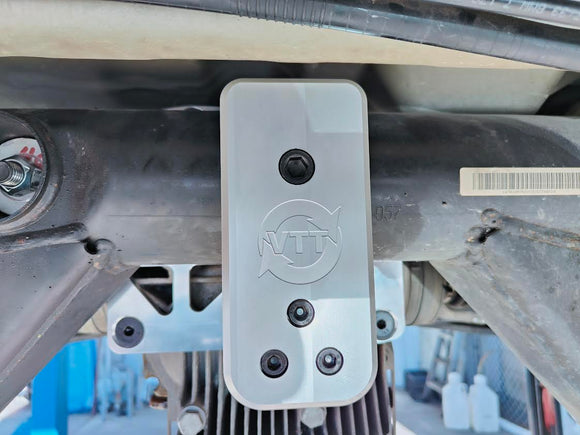

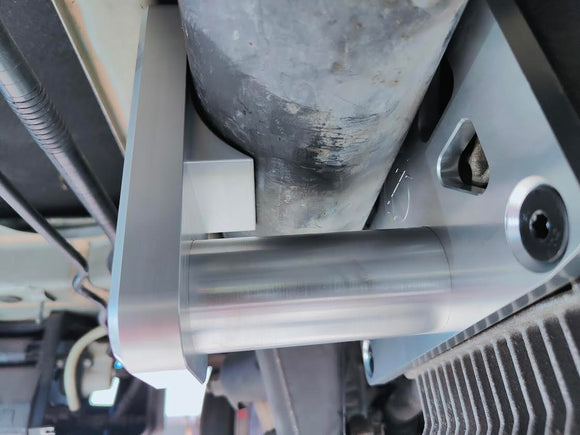

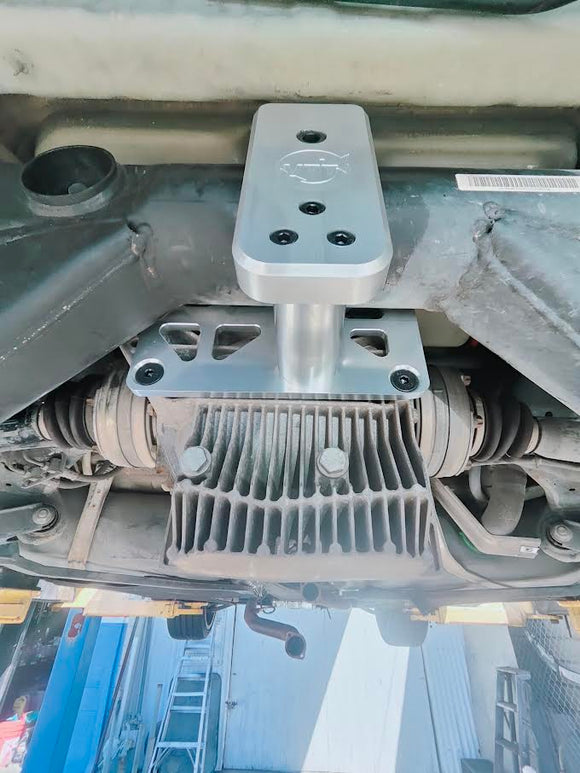

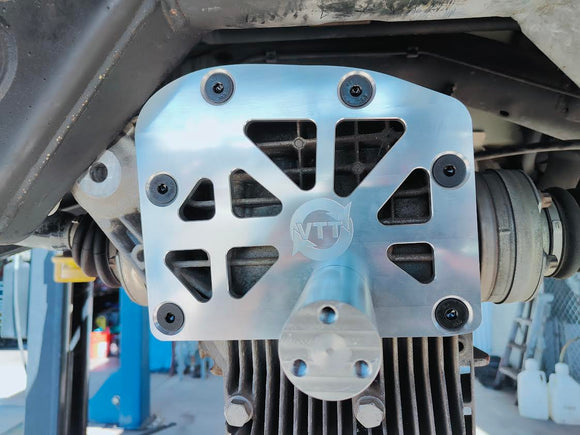

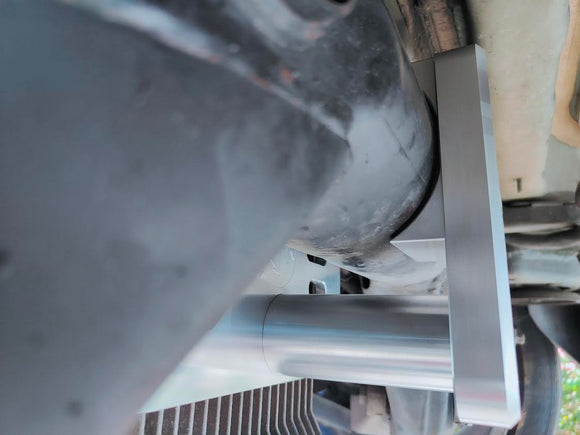

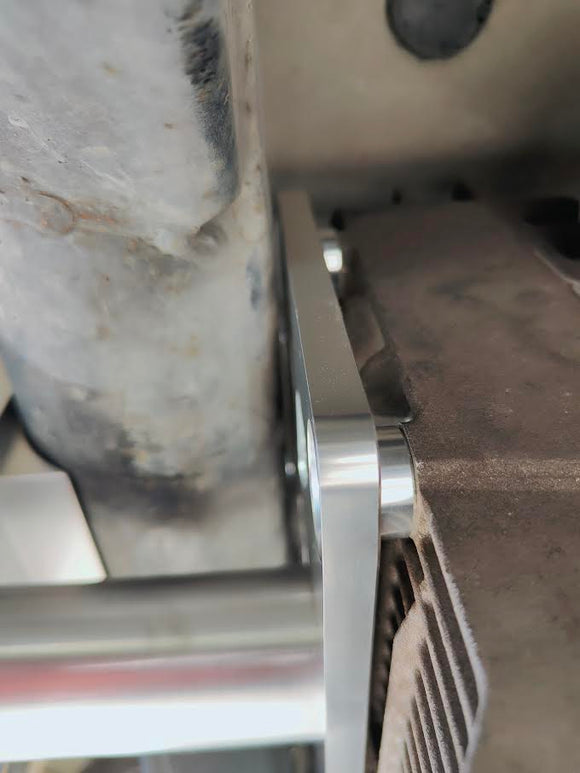

VTT noticed a hole in the E9X M3 market for a high-quality, lightweight, NVH-friendly, and easy-to-install Diff Lock Down kit. So we did something about it and went to work on a very innovative design that 100% positively locks the diff down from movement, while shielding it from adding a ton of NVH, and can be used with the stock diff, and subframe bushings. This design uses existing mounting points on the vehicle, you do NOT have to remove the subframe or the Diff to install. Simply lower the diff to access the front cover, drill one hole in the subframe slightly bigger, install an M12 riv-nut, and install the lockdown. A typical install can be 1-2 hours for someone who is experienced working on vehicles. You WILL need a Riv-nut tool to install the Riv-nut, we provide a link below for what we recommend on Amazon.

Kit Includes:

  • Diff Lockdown kit
  • All 12.9 Hardware
  • 15mm Drill bit for Riv-nut
  • M12 Riv-Nut
  • 12.9 Diff Bolt with lock nut
  • Hardened Steel washers for Diff Bolt

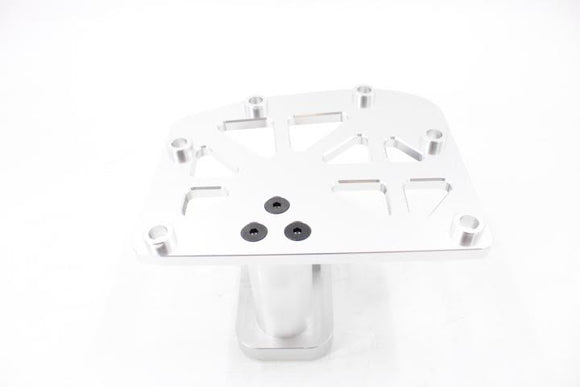

  • 100% Billet construction from 6061-T6 aluminum

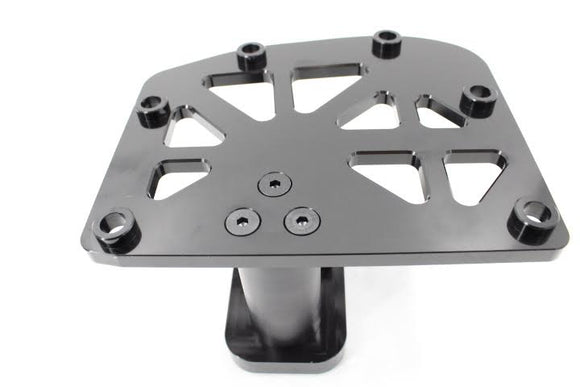

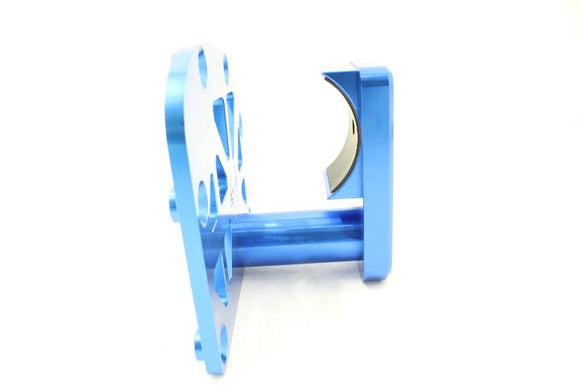

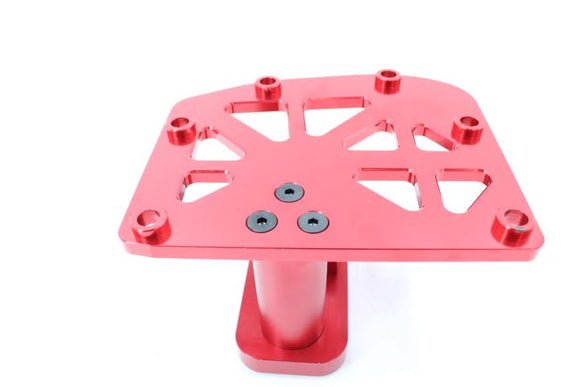

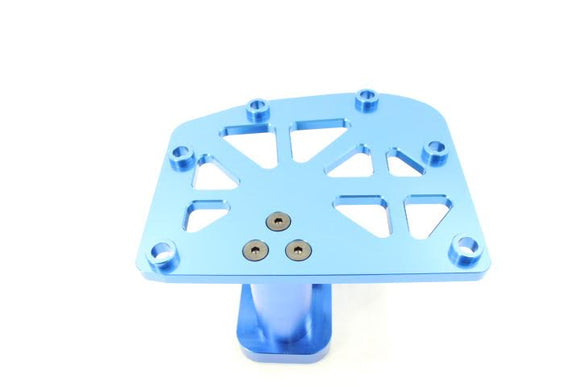

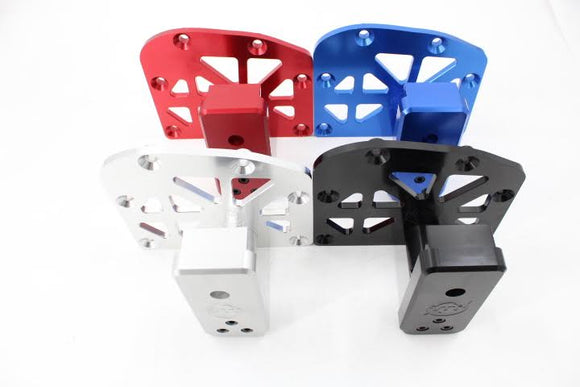

  • Anodized in 4 colors for corrosion resistance, a long-lasting finish, and good looks
  • The subframe does NOT have to be removed for installation
  • Uses all 12.9 grade hardware
  • Does not add excessive NVH
  • Comes with a new Diff Bolt, hardened washers, and lock nut
  • Positively locks down the diff to eliminate all unwanted movement under launches, acceleration, cornering, etc.
